Increase width of Legend Markers

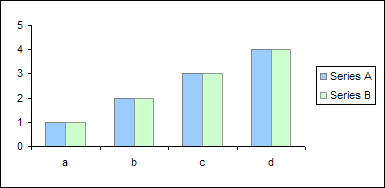

The first chart shows the legend entries at their normal size. The only way to increase the size of the legend marker is to increase the font size of the legend entry text.

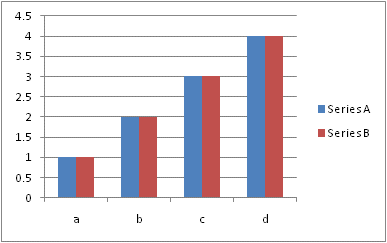

But if you add a dummy series to the chart and change it's chart type to a line the legend markers are stretched to fill the same width space as the line marker. You can format the lines border colour to match legends background and resizing the legend if you want to retain the border.

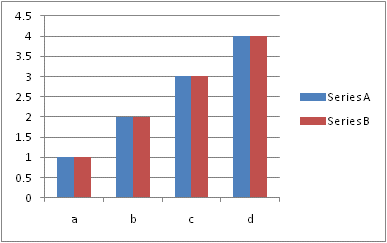

You can do the same in Office 2007



The download file contains both .xls and .xlsx files with instructions.

ng59.zip (70kb)








Created August 2004
Last updated 5th August 2014
